Homepage: http://www.climahom.eu

ProClimDB software

EULA

• General characteristics
  • Database software for processing climatological datasets
  • Automation of the processing (processing whole database or specified stations all at once)
  • Full control over the processing: many parameters for computing can be set, various auxiliary outputs are created
  • Open structure - you can define your own menus
  • Flexible for modifying and adding new functions (FoxPro, R, ArcView)

• Brief technical description
  • Two modes of processing: monthly or daily data, some functions work for x-minute data
  • The files can be displayed using build-in Viewer of edited in MS-Excel
  • Possibility to run own commands to manage the database tables, you can even launch scripts (sequence of commands)
  • Software menu can be completely rebuilt, you can add new functions pointing to your own scripts
  • Batch mode for processing sequence of commands

• Functionality description
  • Import from TXT,DBF to DBF files, output data export to TXT files, MS-Excel, other formats ...
  • Adjusting data
    • creating cross-tables, restructuring to one data column
    • calculating monthly, seasonal and annual averages (sums, extremes)
    • calculating differences (ratios/log-ratios) between two series (e.g. tested and reference series)
    • replacing values, transformations
    • combining series, adjusting table structure etc.
  • Data transformations
    • standardization
    • differencing
    • filters
    • grid points calculation
  • Basic statistical characteristics computation
  • Correlation analysis
  • Finding outliers and extreme values (interquartile ranges)
  • Distribution fit testing, CDF, return period calculation
    • normal distribution
    • gamma distribution
    • generalized extreme value (GEV) distribution
    (output: CDF values, parameters of the distribution, fit test, values for P-P and Q-Q plot, etc.)
  • Further statistics: SPI, regional regression, RPI, ...
  • Number of days characteristics (Daily data):
    • applying limit value, minimum number of consecutive days
    • getting count, percentage of days, effective or active sum, percentage of values
    • day frequencies, k-day periods, ...
  • Data quality control by comparing base station to its neighbours (the same options as for reference series calculation, see further)
    • stations can be selected by combination of correlations, distances, difference in altitude, the same region
    • standardization to base station AVG, STD, or altitude
    • expected value calculation from neighbouring stations
  • Series reconstructions
    • finds near stations that can be used for combining (complementing) of missing periods
  • Reference series calculation
    • stations can be selected by combination of correlations, distances, difference in altitude, the same region
    • (weighted) average from the best correlated stations
    • (weighted) average from the nearest stations
    • (weighted) average of all stations available for a given year and month (within a given region)
    • standardization of neighbours to base station AVG, STD, altitude
    (output: reference series, information file with list of stations used for calculation - can be modified, etc.)
  • Connection with AnClim software (homogeneity testing done on the background)
  • Adjusting series for inhomogeneities
    • various statistics for decision making about suggested adjustments (correlations improvement, t-tests, STD change, regression, etc.)
    • smooting adjustments
    • tools for daily data adjustments ("delta" method, "variable" correction such as HOM, SPLIDHOM, ...)
    (output: values - adjustments for each month, t-test, change in correlations after the adjustments, etc.)
  • Filling missing values:
    • from differences (ratios)
    • using linear regression
    (output: t and F test for periods to be used for filling missing values, etc.)
  • Tools for validation and correction of RCM (model) outputs:
    • calculating station technical series for given grid points
    • Bias,RMSE,MAE ... characteristics
    • Comparing basic statistical characteristics of two datasets
    • frequencies distribution (of differences, ...)
    • variable corrections of model outputs (based on percentiles, ...)
  • Connection with R software:
    • launching of R scripts is available, thus you can prepare and process anything
    (ProClimDB prepares intput, calls R functions and then gets the output back into ProClimDB environment)
  • Connection with ESRI ArcView 3.2:
    • launching of ArcView (Avenue) scripts, so far available: getting point values from a Grid, calculating maps, summarize zones, converting ASC to Grid and back
    (ProClimDB prepares intput, calls ArcView functions and then gets the output back into ProClimDB environment, full automatization - e.g. for all days, months, years, ...)
  • Connection with LoadData software (homogeneity testing done on the background)
  • Processing in batch mode:
    • all the needed tasks can be listed in a file and fulfilled by one button press. You just wait for the results ...

  • Examples

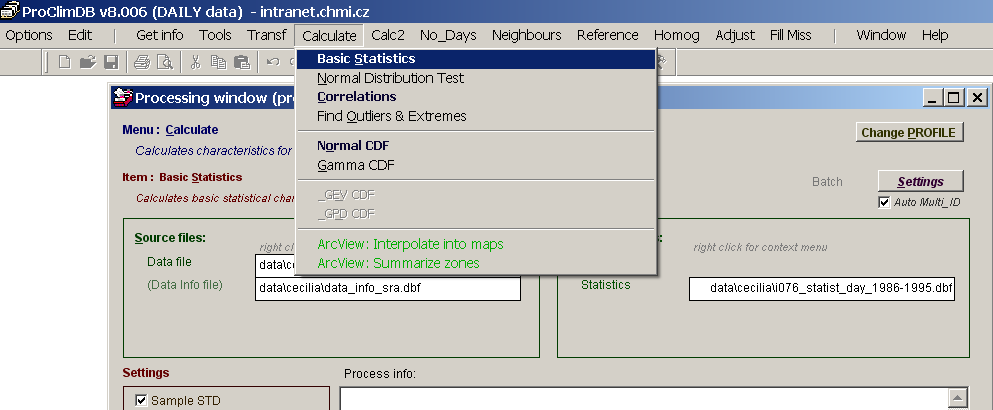

    • Example of menu


    • Processing window

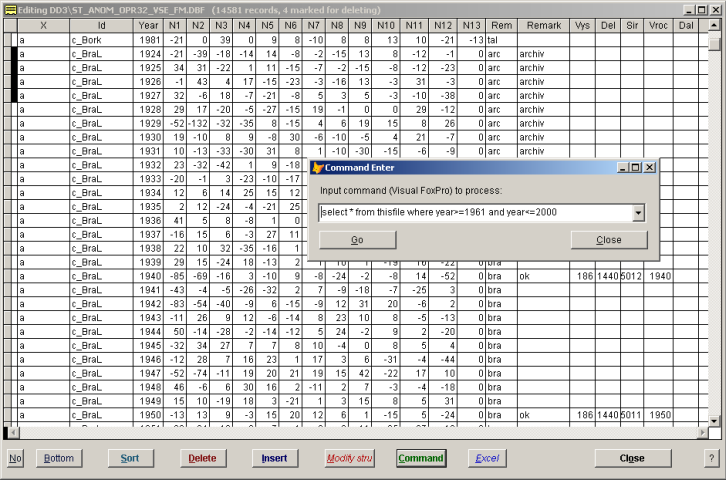

    • Viewing a data file

    • Creating reference series: proposed lists of stations in Ref_Info_file


  • Documentation
    • Documentation for the ProClimDB software
      (Updated documentation can be found under Help menu of each software)




  ---

  Using the software may require (in the beginning) the author's services - assistance - to get acquaint with the approach.

  ---




  Download Area       Get the Latest Version of the ProClimDB software: Installation files for Freeware Version     Users of the ProClimDB: Click to Download Updated files       Click for information about full version of the software

  The downloaded version of the software expires after some time. One of the reasons is that I improve the software all the time and I want the users to work with the latest versions.


  ---




  Reference to be used in publications: Stepanek, P. (2008): ProClimDB - software for processing climatological datasets. CHMI, regional office Brno.

  ---

  Author: Petr Štěpánek
  Homepage: http://www.climahom.eu
